Special Price CR2 DB Carbon

Limited for 10 sets.
Carbon spoke. 1160 grams for 50mm. 24mm internal width, 2026 version.

T1100
Slight T1100 added for stiffness. 120J impact test, max 140kg spoke tension.

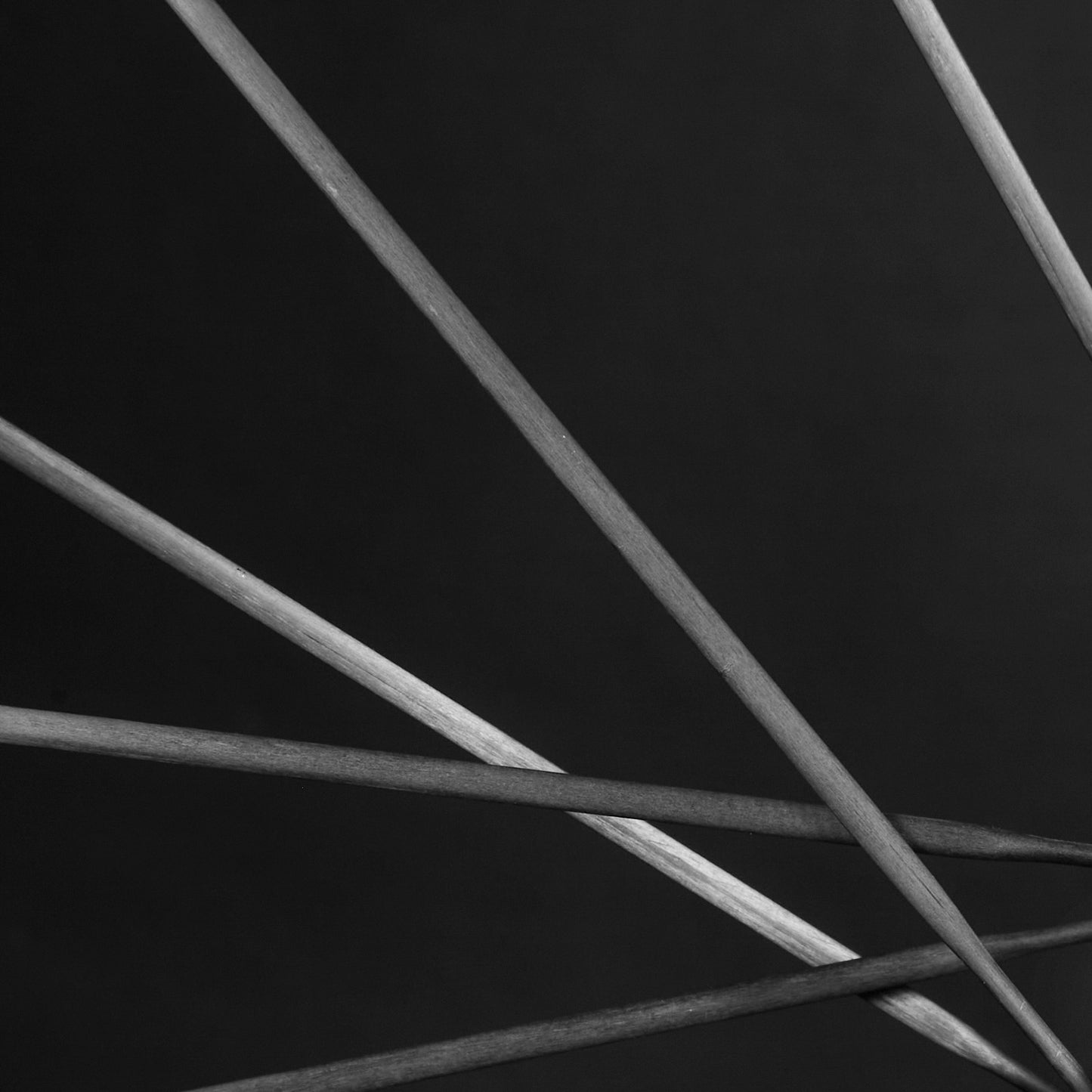

Carbon Spoke
1.7 Grams with T1000 fiber and titanium metal part. Nearly 50% lighter and 25% stiffer than the best of steel spokes. Aero shape and individually repairable. Traditional mechanically connected carbon spoke type. More stable comparing with cemented carbon spokes that can work with steel spoke hubs.

Loop
Under traditional process, the main section of the rim is constructed of 4 piece of fiber, so it is easier for workers to handle and fasten the manufacturing speed. We use one piece of fiber instead, the integrity of carbon fiber increases rim strength but skilled and patient workers are required.

Purim
Not only paint free. Under Purim technology, the raw rim is already close to painted rim so only need to be slightly polished and thus reserves more strength and stiffness.

Extrawide
24mm internal width,30mm external. More aero and better control.

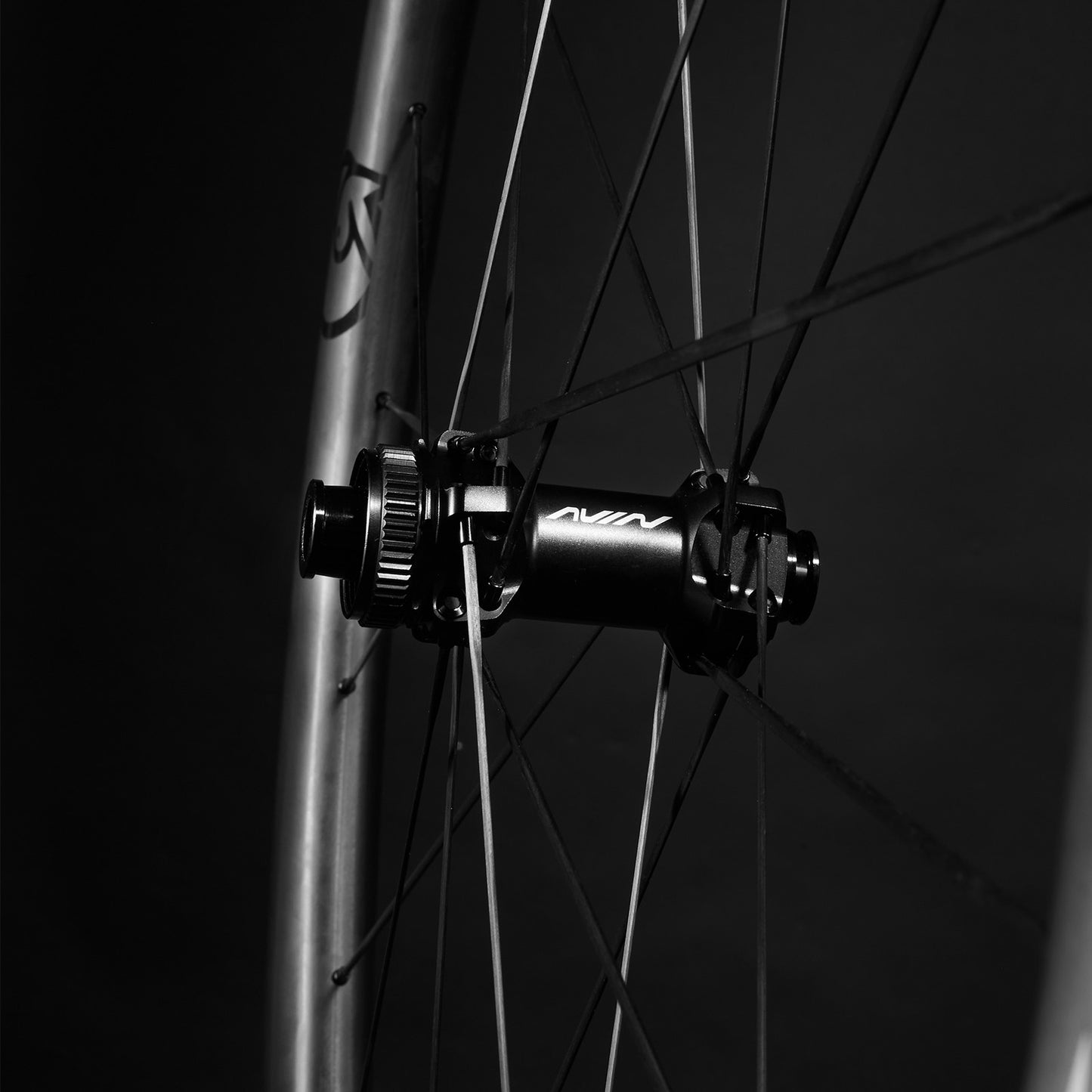

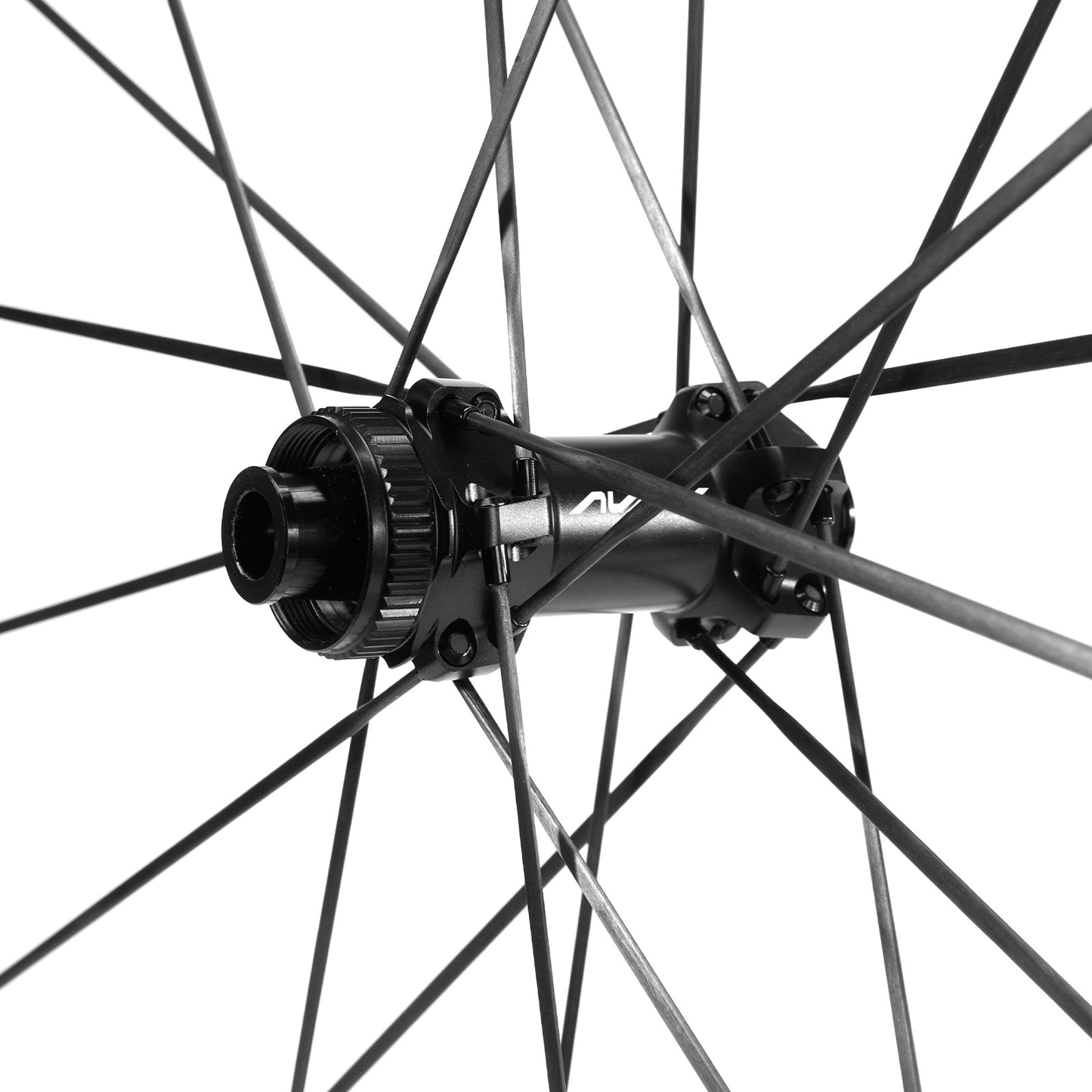

R280 Hub
A stable hub for carbon spoke, T head design so spoke is unlikely run out. Ratchet system and steel bearing inside.

Specification
Rim: Avian CR4 DB
Brake Type: Disc Brake
Tyre Type: Clincher & Tubeless
Width: 24MM Internal 30MM External
Height: 50MM
Weight: 1160 Grams
Spoke: Aero Carbon
Bearing: S&S Steel
Ratchet:36T
Cassette Body: SH/XDR
Holes: 20/20
Compatibility: Thru Axle Center Lock
Rider Weight Limit: 100KG
Warranty: 2 Years(Rim&Hub)
