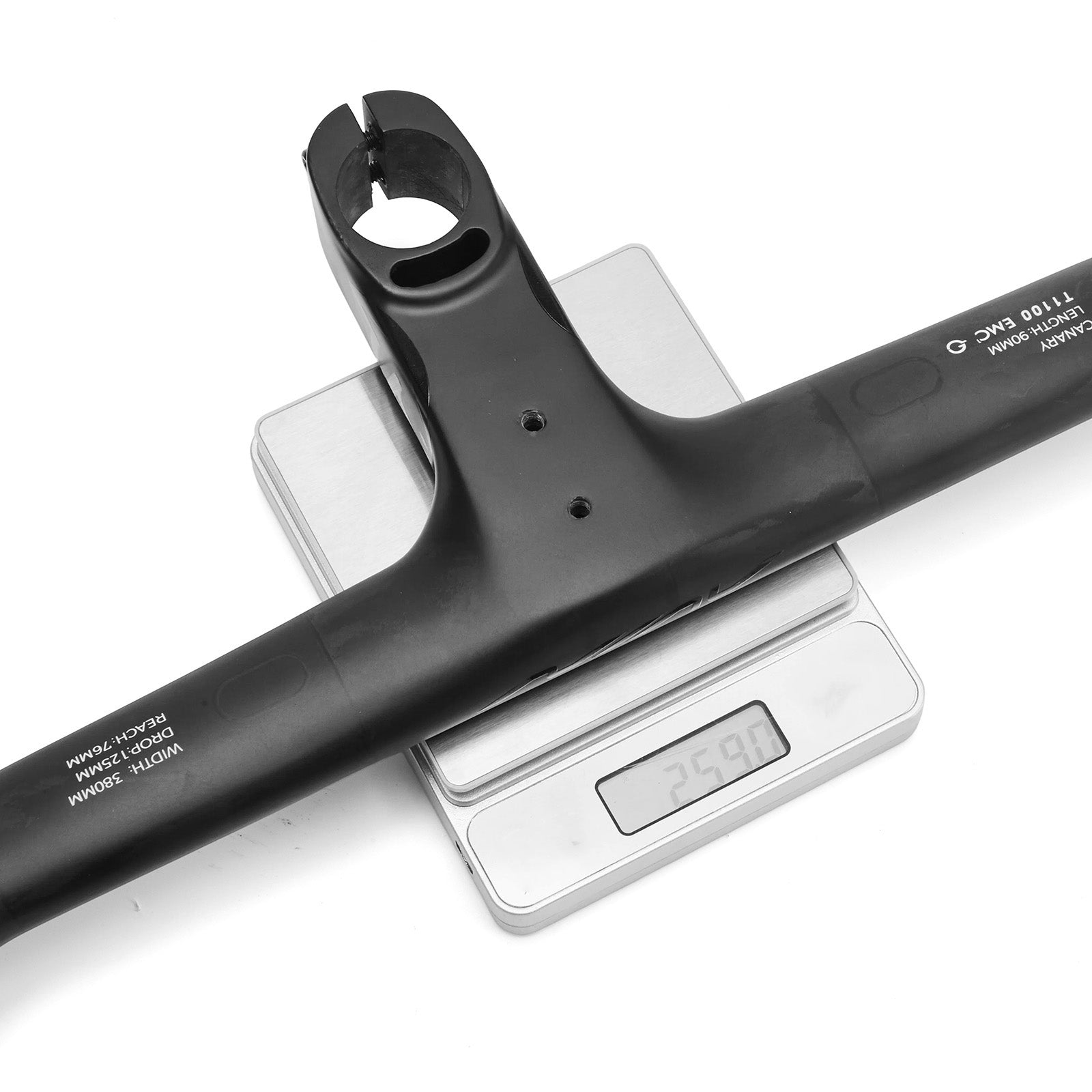

260 grams average. 250-270 grams depending on size.(7 grams stem bolts included)
10% stiffer than 1st generation. Balance type for everyday use.
Passed 200000 times fatigue test under ISO4210-5 and a extra 400mm drop test with 16kg load which is more difficult. Optimize some detail strength design. Rider weight limit 100kg.
T1100 fiber and graphene resin. Integrated molding instead of traditional cementation.
OD1 only to save extra 15 grams of adapter ring in use and create a smoother spacer transition which is particularly obvious for external frames like Aethos.
Full internal and compatible with mechanic groupset with full size routine hole.
Close the external routine holes but external version is still available for customize.

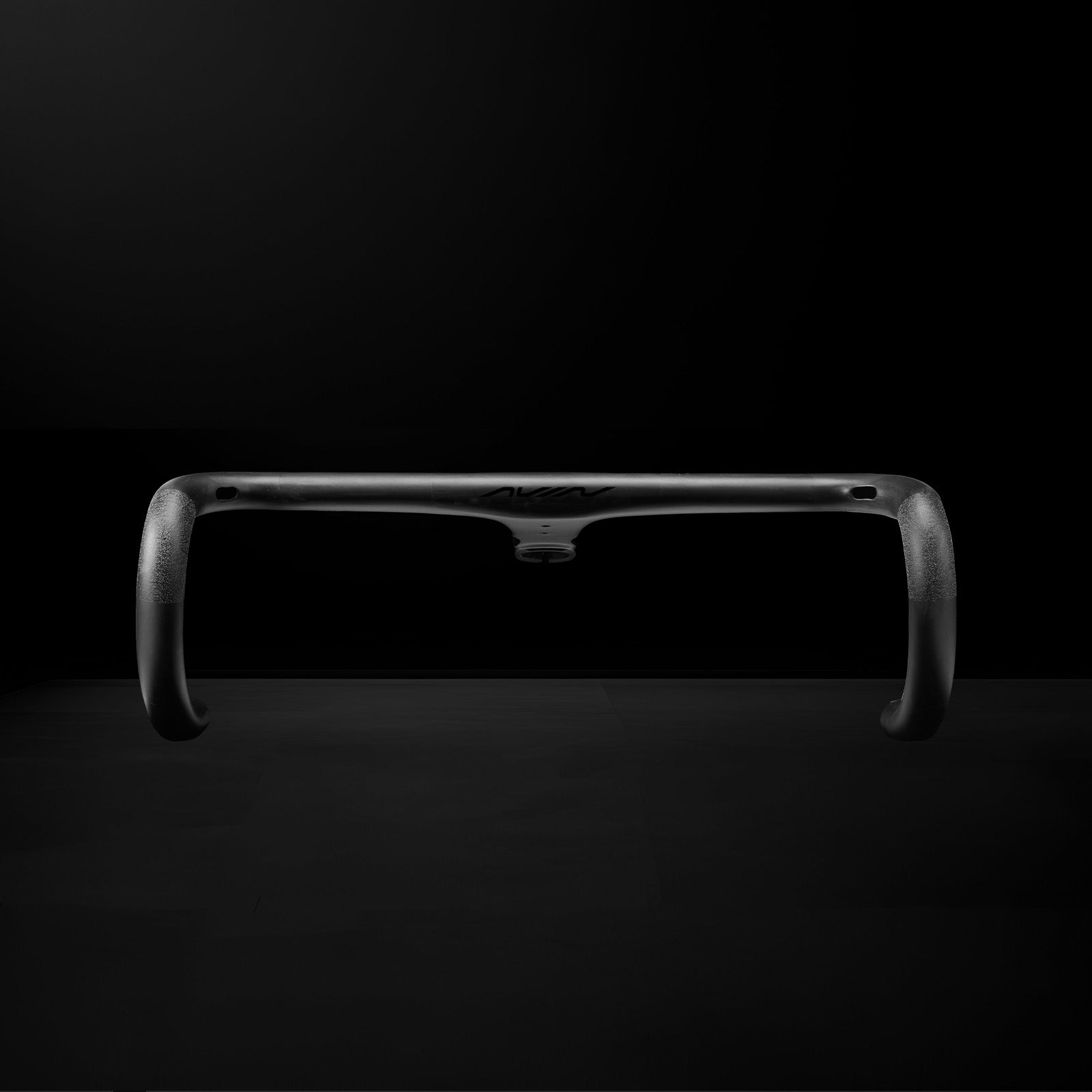

Aero shape design(35mm section in the middle). Recommend to match with all around frames like SL8 and Madone Gen8.

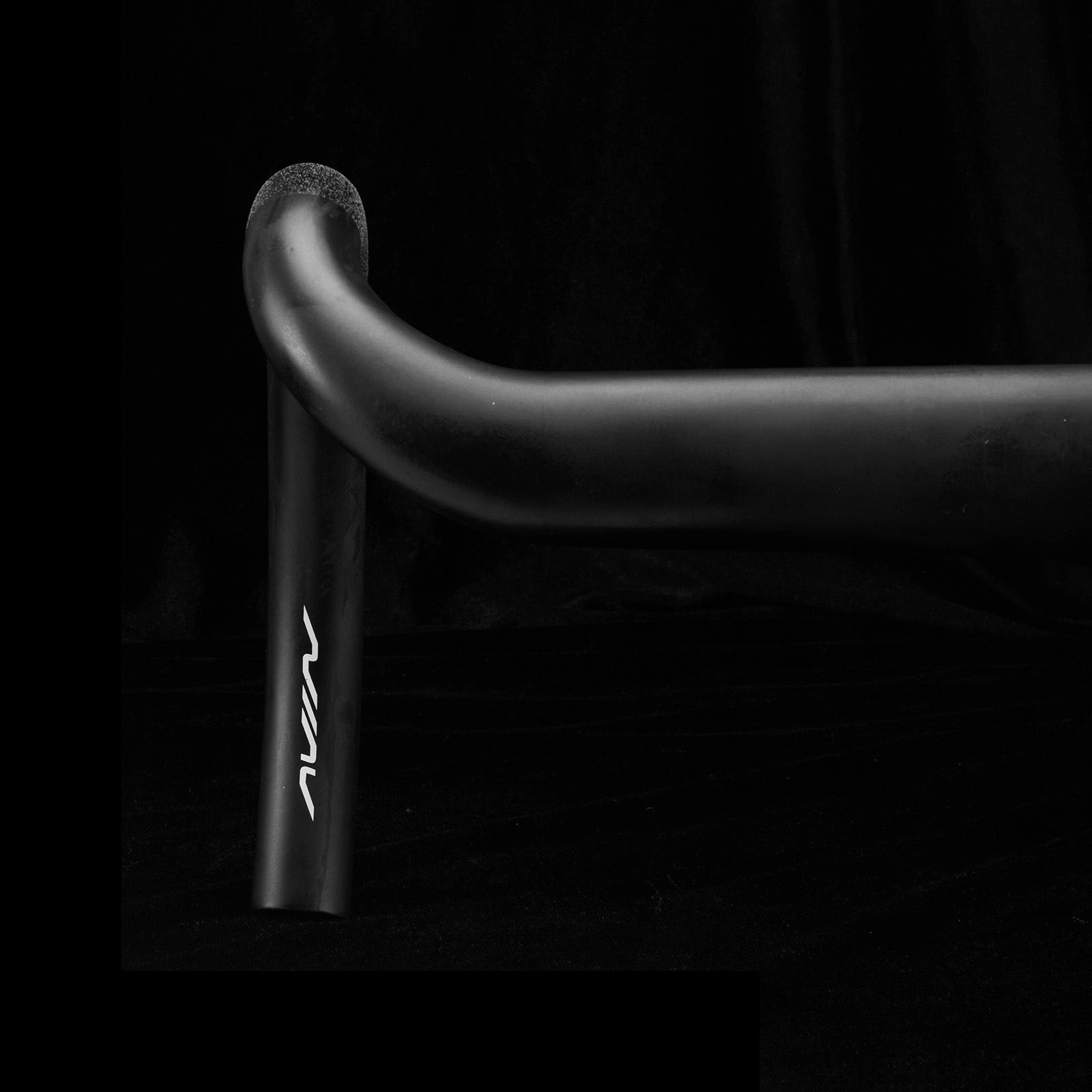

50% raw paint. Joint line and carbon texture is slightly visible but it is heavier painted comparing with Parus, so the look will be more delicate.

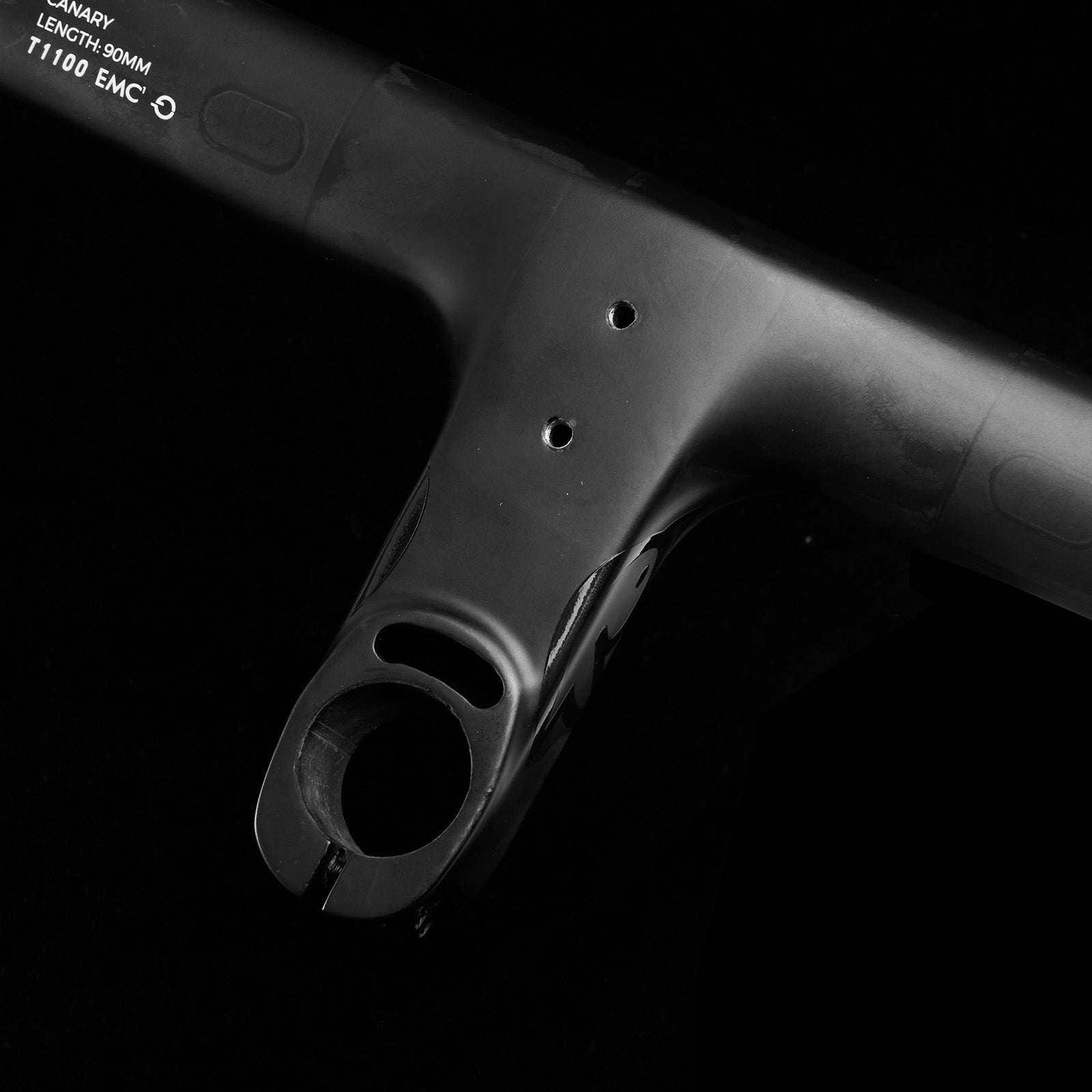

Handmade stem holes instead of CNC machined to protect more fiber(8N max). Steel bike computer nuts.(5N max) Higher torque than most 300+ grams handlebar.
Comes with hollowed titanium bolts, carbon bike computer mount, stem cap and spacer.
Recommend to contact us with your frame model and picture to send the free spacer specific for your frame. Compatible with 99% frames on market.

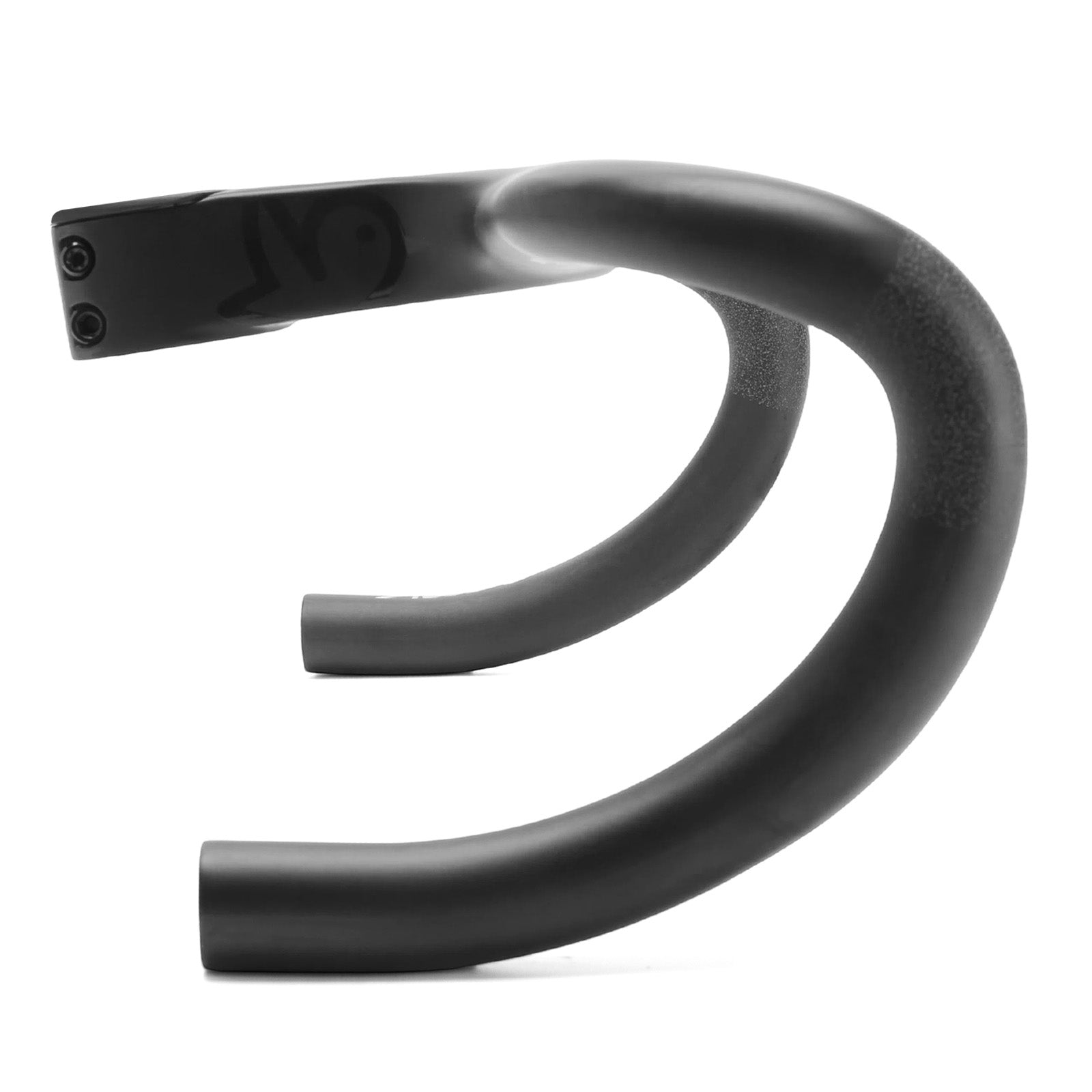

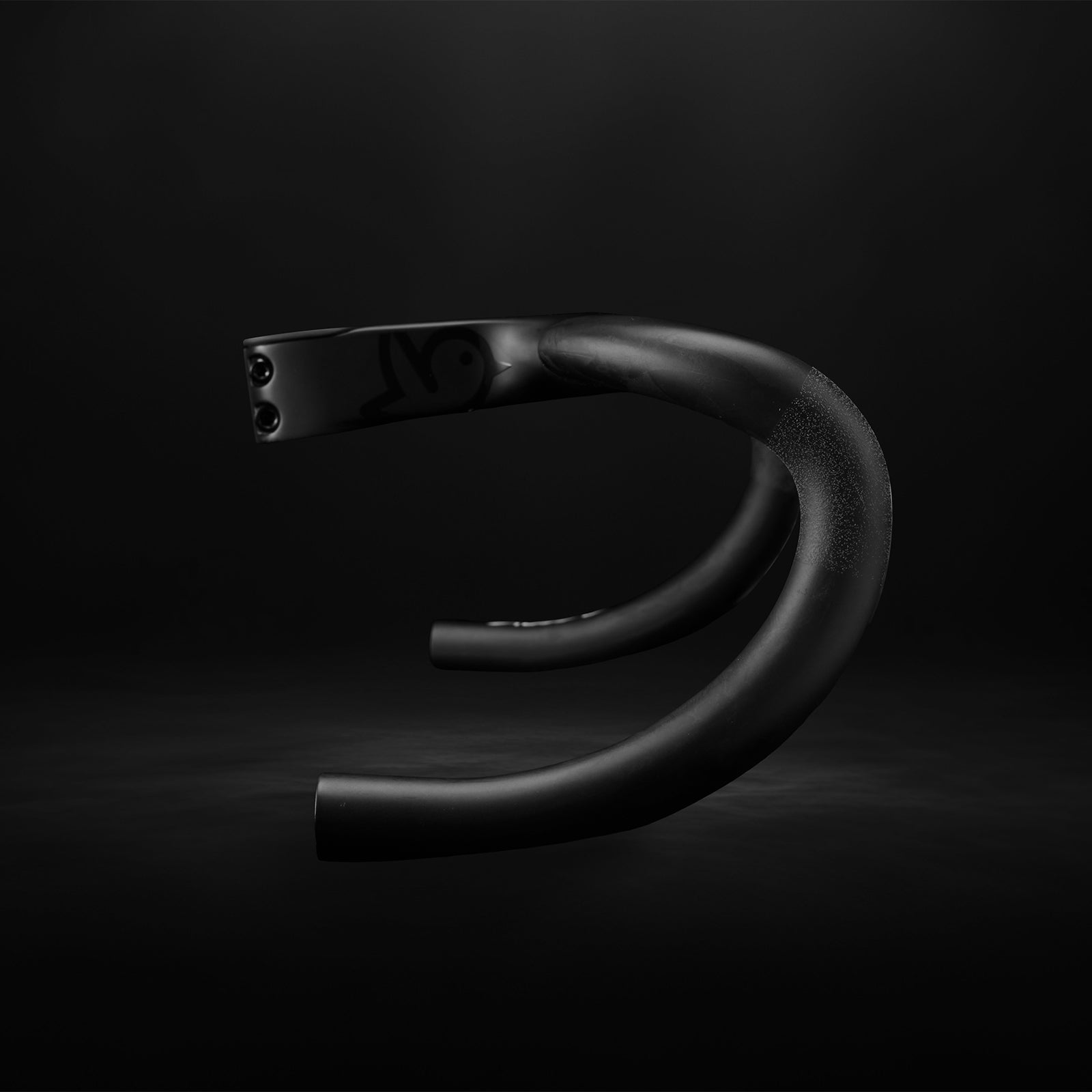

72mm reach, 125mm drop, -8°.
Size refers to upper width, center to center. Lower width is 20mm wider for control.
