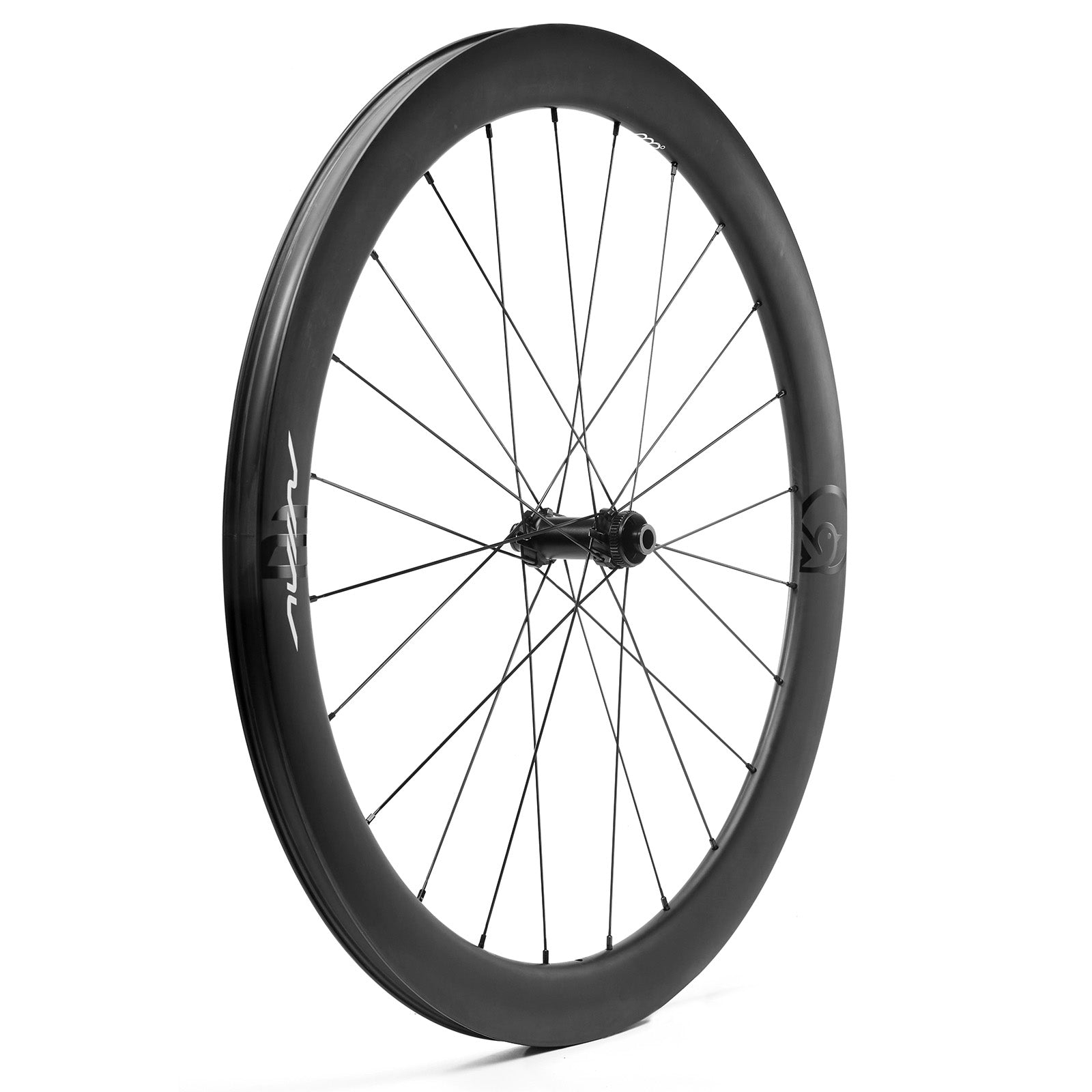

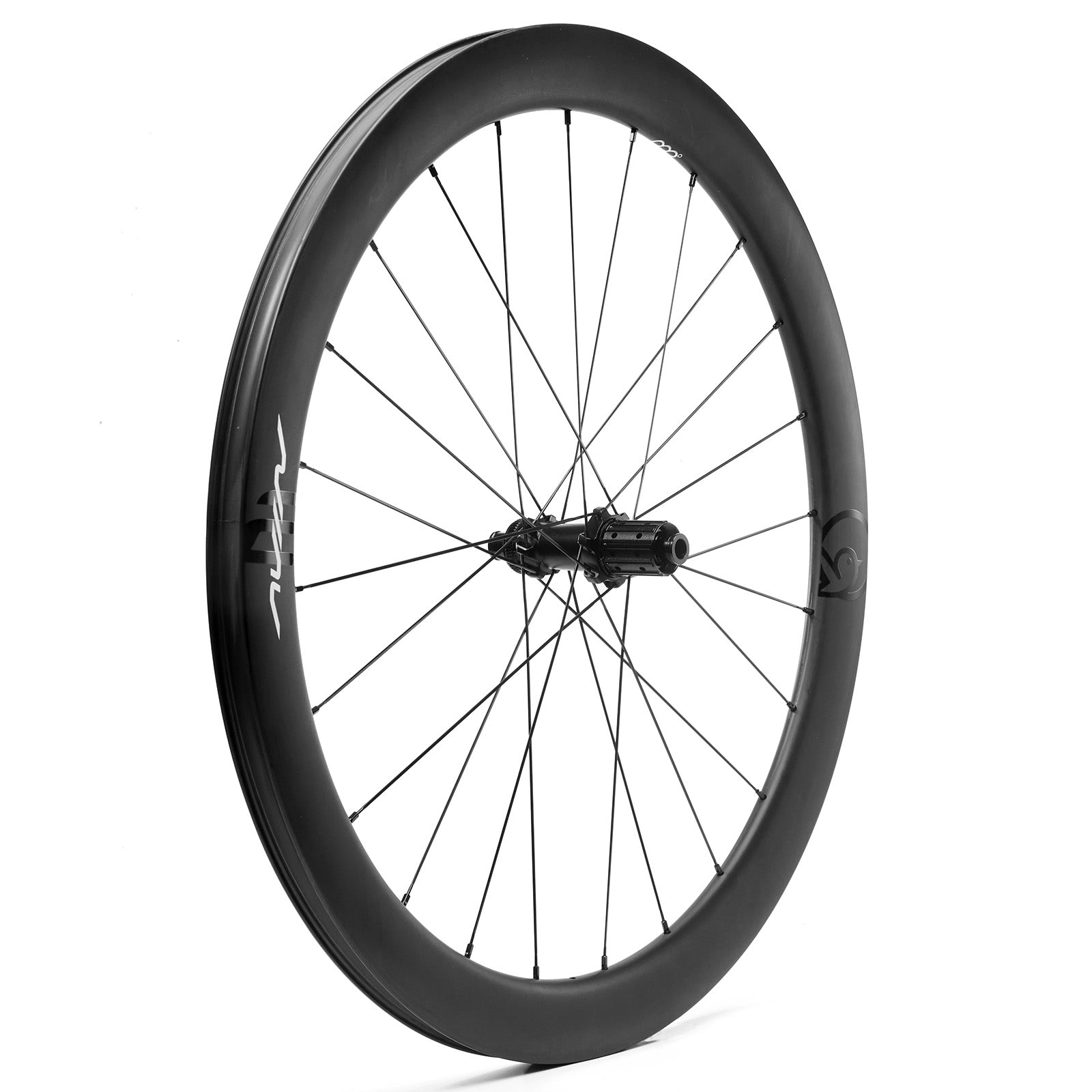

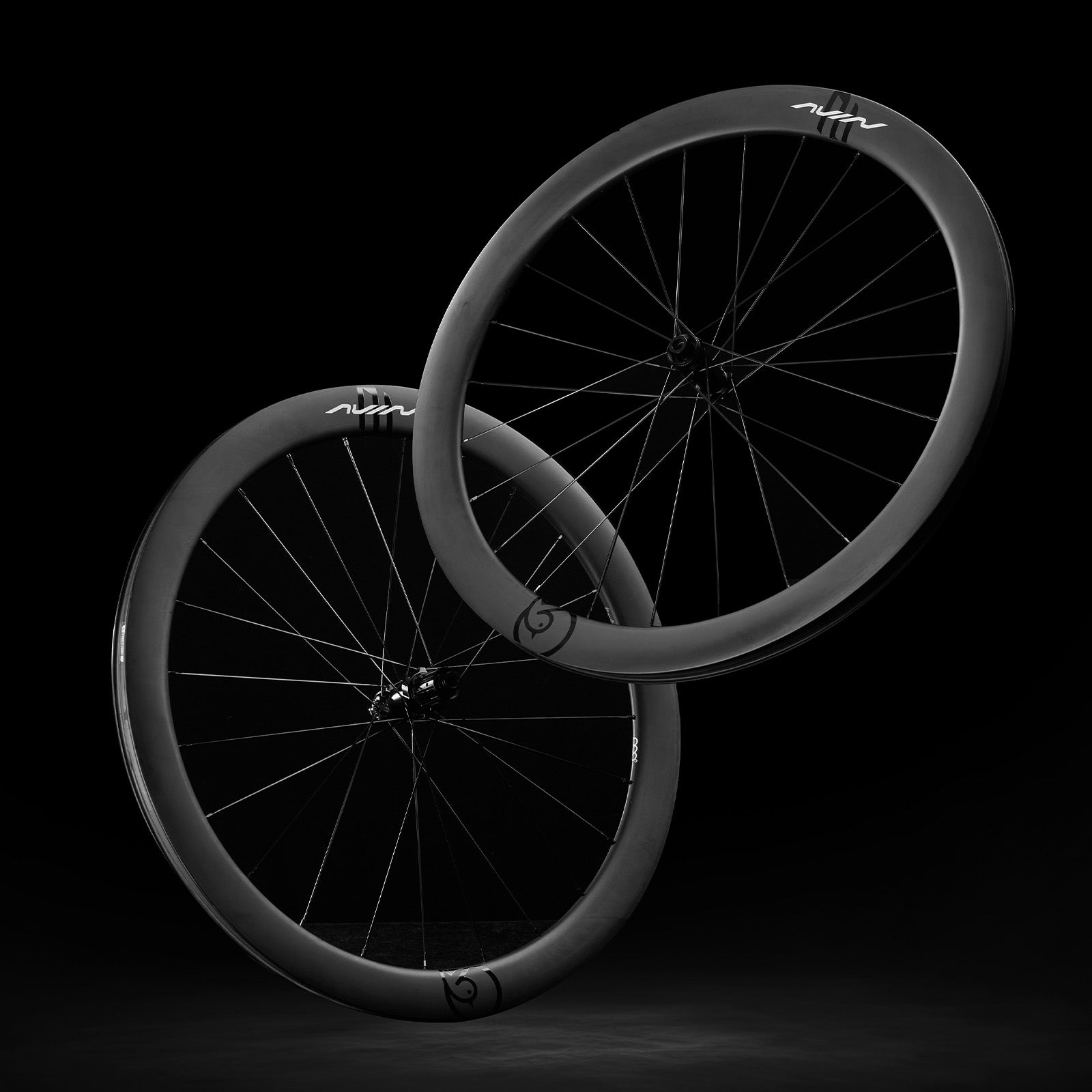

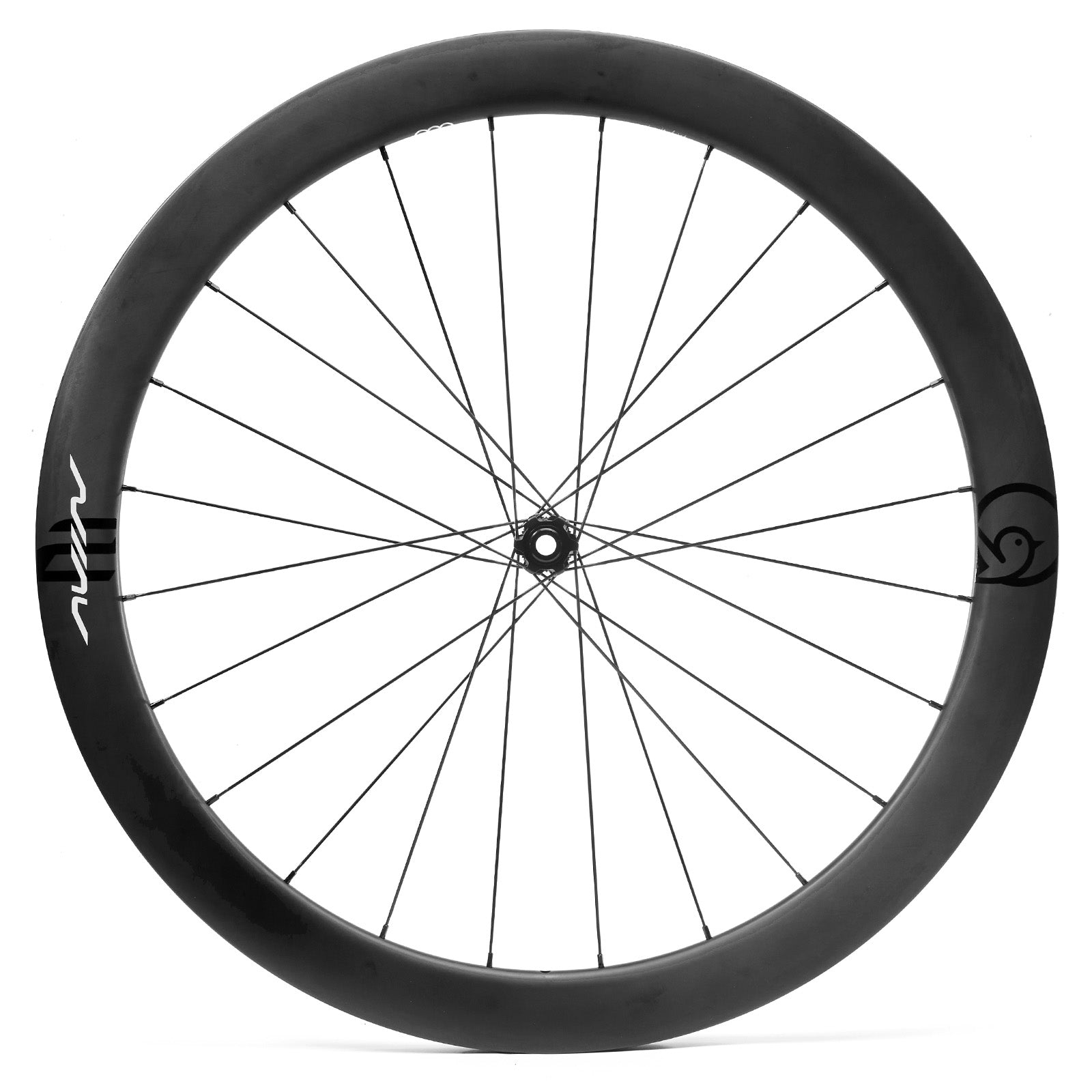

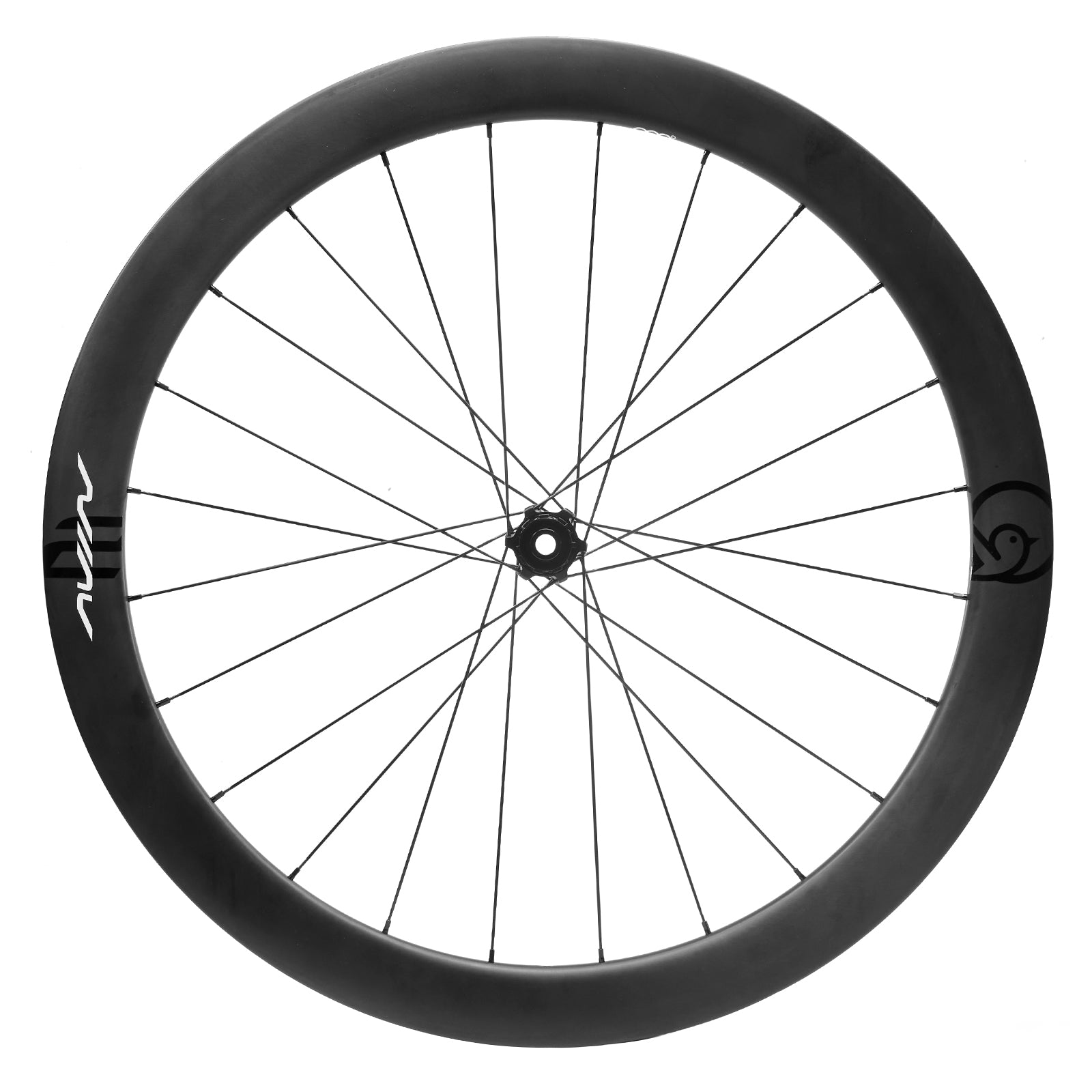

1290 Grams 45MM
Avian CR2 DB
Avian CR2 DB
Couldn't load pickup availability
UCI Approved for 50C.
Allrounder that can be used from gravel to road racing.
Feature
T1100
Slight T1100 added for stiffness. 120J impact test, max 140kg spoke tension.
Loop
Under traditional process, the main section of the rim is constructed of 4 piece of fiber, so it is easier for workers to handle and fasten the manufacturing speed. We use one piece of fiber instead, the integrity of carbon fiber increases rim strength but skilled and patient workers are required.
Mega-Structure

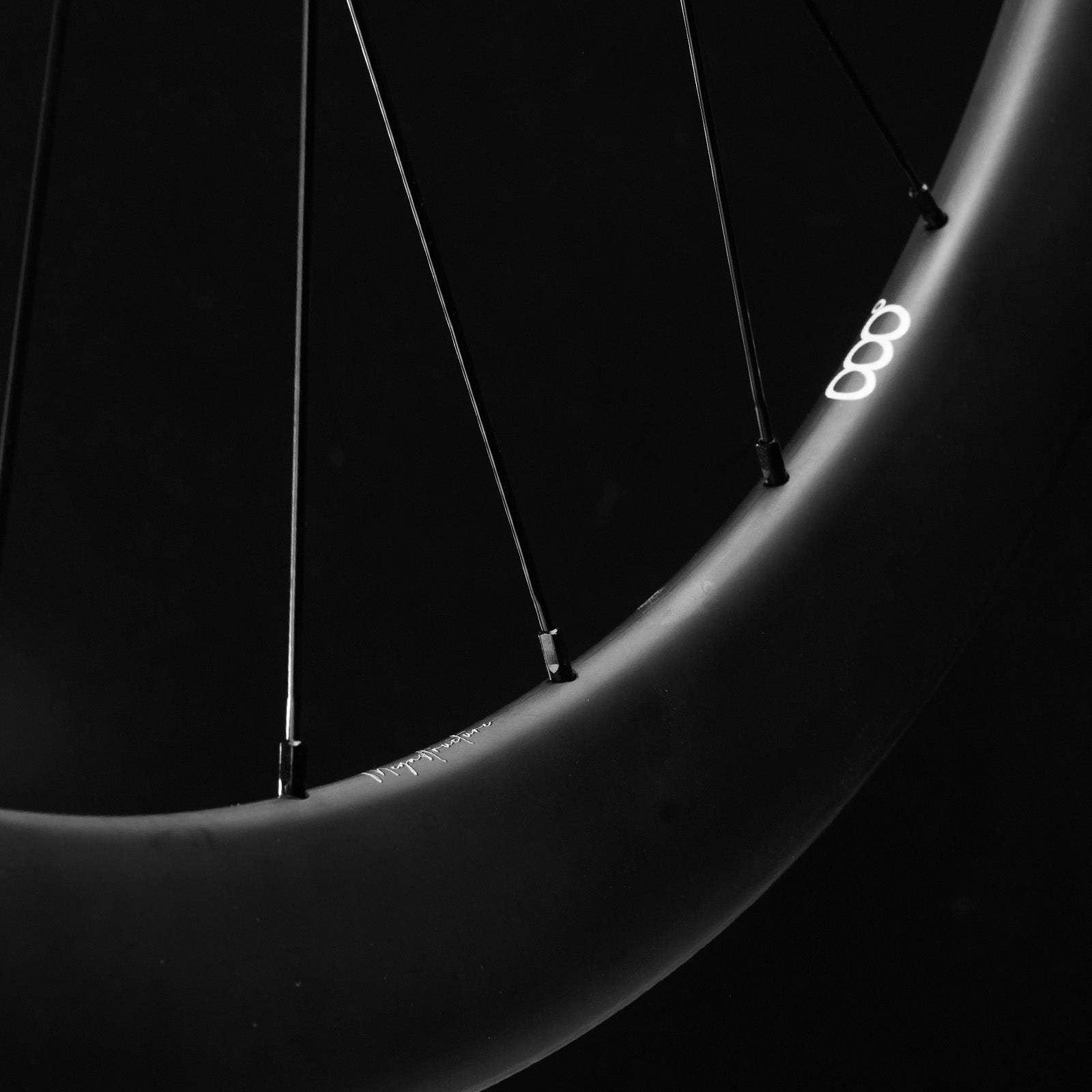

No external hole design. The continuous structure make the rim stronger and stiffer. Rim tape is not needed and thus saves another 50 grams in use.
Extrawide

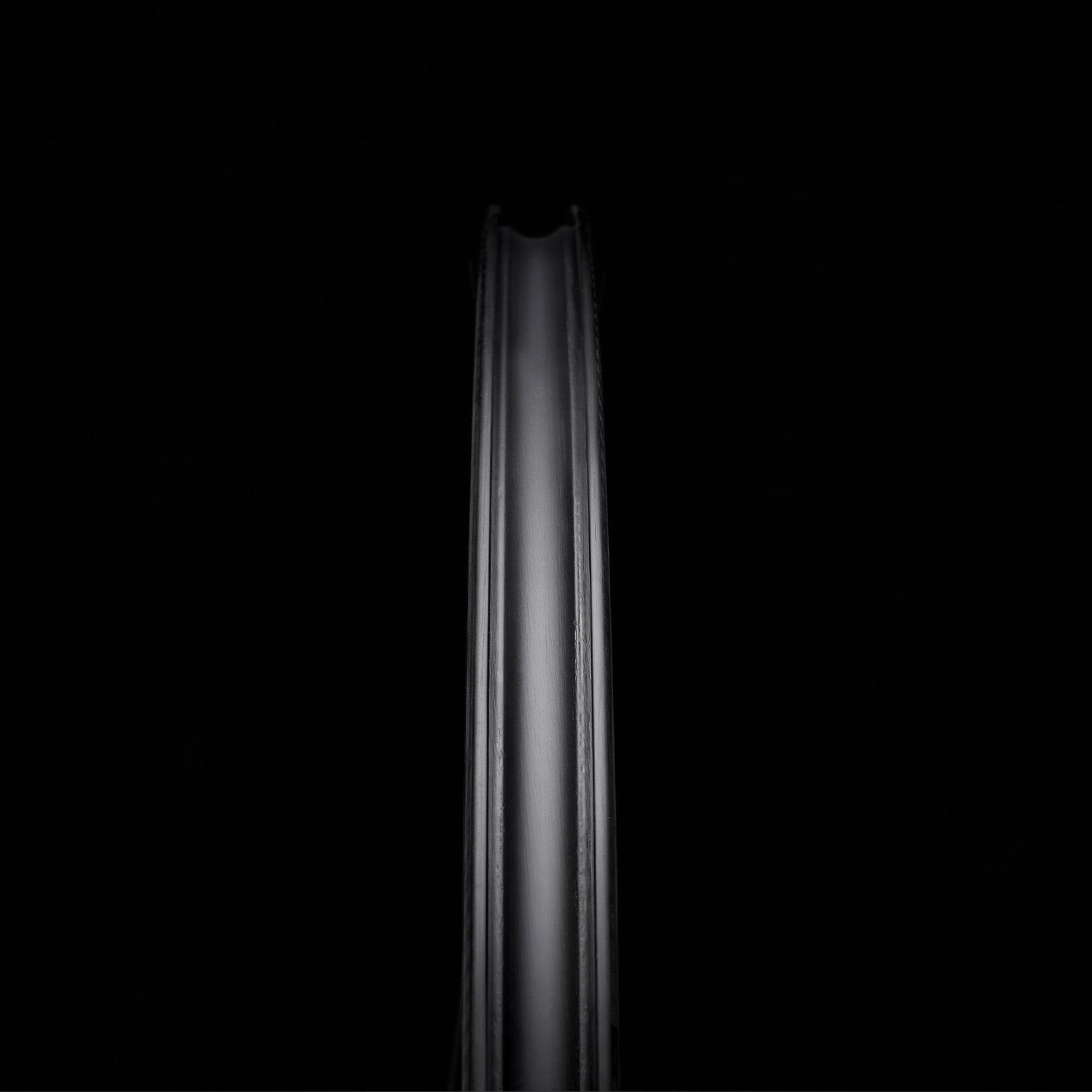

24mm internal width,30mm external. More aero and better control.
Purim
Not only paint free. Under Purim technology, the raw rim is already close to painted rim so only need to be slightly polished and thus reserves more strength and stiffness.
Ratchet System
Stable and easy to maintain by changing ratchet ring inside. Each is examined under microscope for endurance.
Aero Spoke
Blade spoke for aero performance.
Specification
Rim: Avian CR2
Brake Type: Disc Brake
Tyre Type: Clincher/Tubeless
Axle Type: Thru Axle
Disc Type: Center Lock
Width: 24MM Internal 30MM External
Height: 35/45/50/60
Weight: 1230G/1290G/1330G/1430G
Spoke: MAC416 Aero
Nipple: Sapim Secure Lock

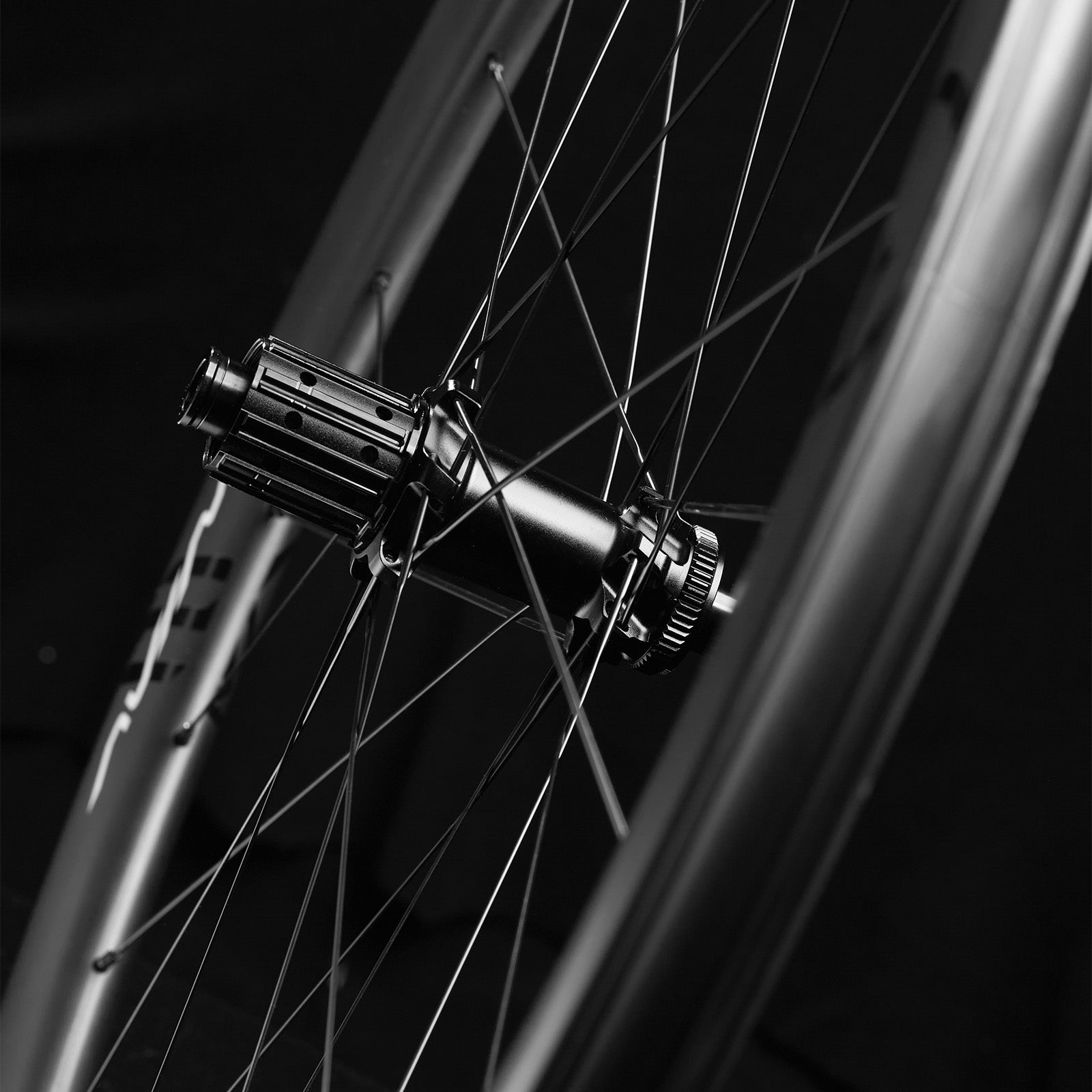

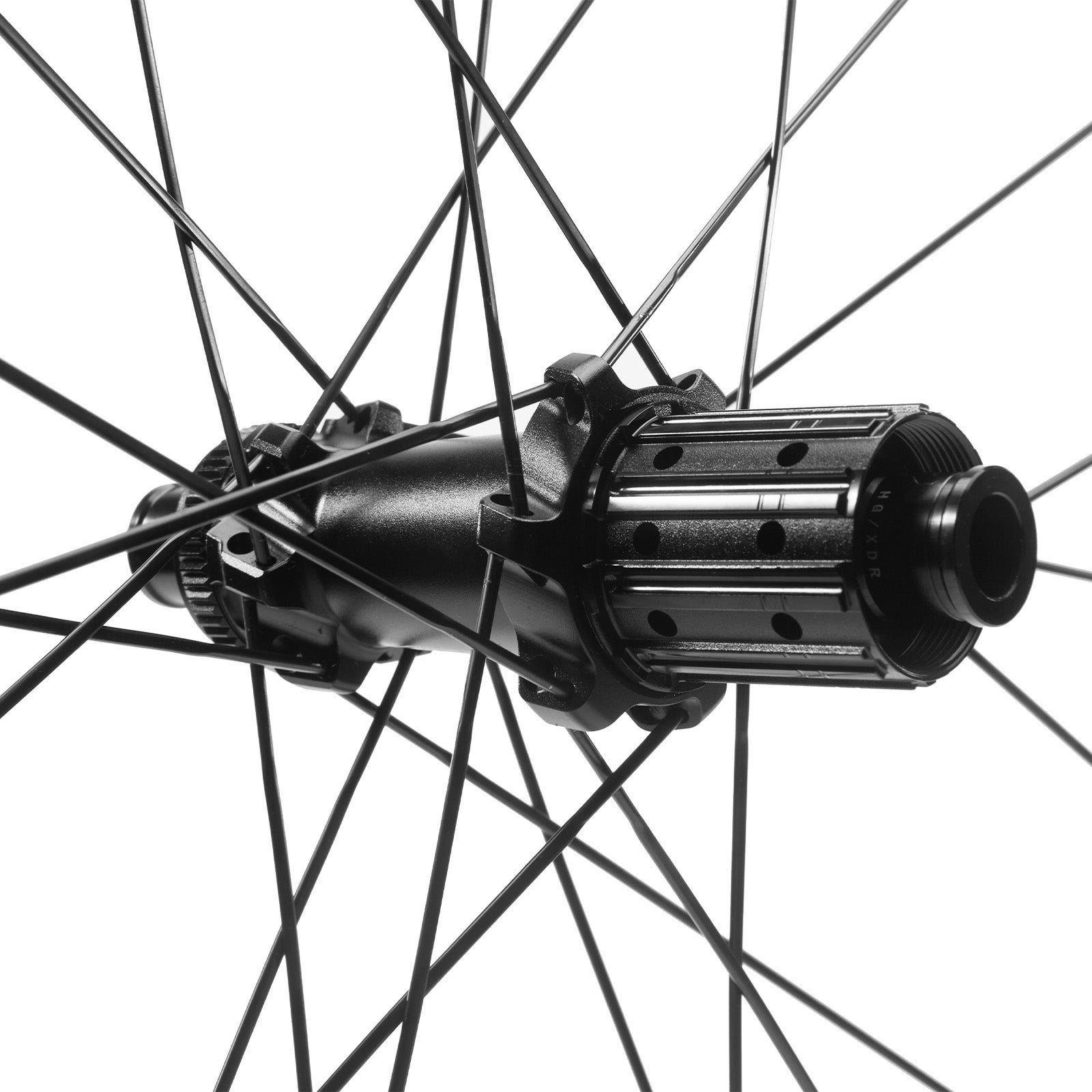

Hub:Avian R300
Ratchet: 36T
Holes: 24/24
Warranty: 2 Years(Rim&Hub)
